Setting up Tab Merchant for EBT and Scale
The following need to be enable for a merchant needing EBT and scale set up
EBT need to flag department for EBT
alter table department add column EBT int(10) DEFAULT '0';
Currently manual as no UI to add flag - for EBT change flag to 1
SCALE SET UP:
Item Extended Info to add forced or embedded weight
Function ID required for this is 1091
insert into `function` (`FunctionID`, `Name`, `Module`, `modified_time`)
values('1091','ITEM_EXTENDED_INFO ','CAS','2017-12-12 15:16:05');
insert into `accessrights` (`RoleID`, `FunctionID`, `RightID`, `modified_time`)
values('2','1091','6',NOW());
insert into `accessrights` (`RoleID`, `FunctionID`, `RightID`, `modified_time`)
values('3','1091','6',NOW());
ON THE MERCHANT - CAS
ADD Item Extended on each item that will be weighed (on the Master Item UI)
Support for
Force Quantity ( SKU_TYPE = 1 )
Force Weigh ( SKU_TYPE = 2 )
Embedded Weight ( SKU_TYPE = 3 )
Embedded Quantity ( SKU_TYPE = 4 )
Globally at an app level we should have a configuration to enable these features
Weigh Scale = 1 ( POS Configuration )
Embedded Pricing = 1 ( POS Configuration )
Force Quantity
hen you scan an item if the force qty is enabled then show a popup to enter the quantity . Add the item to cart with Quantity enable .
Force Weight
When you scan an item if the force weight is enabled send a getWeight to scale and get the weight from scale. If the scale is not enabled show an error message
Price/Qty Embedded
When you scan the barcode check if the product starts with "02" or "2"
Here is an example of an EAN13 barcode (0200101002076):
Each of the digits represent information on the item:
02 or 2 - The "header," indicating that the barcode has embedded information
00101 - The SKU/PLU for the item
0 - The sum of the correct digits in a piece of stored or transmitted digital data, also known as the checksum
0207 - The price ($2.07), or in some cases, the item's weight. If the barcode starts with 2 then it is 5 positions
5 - Another checksum of the barcode's previous digits
Setting up the Weight Scale:

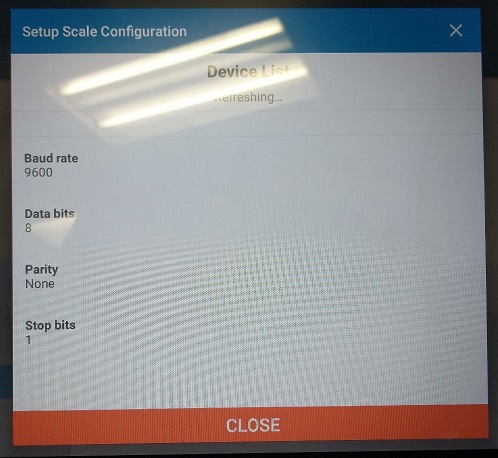

On the Tablet device - Weigh Scale Configurations
Go to Configuration>Hardware select Scale
Select USB option>Pulls up this UI, it will search for scale, click on it to pair
Default values are in paranthesis
Baud Rate ( 9600 )
Data Bits ( 8 )
Parity ( EVEN)
Stop Bits ( None )
Ref weigh scale serial port comm on Android
https://github.com/kai-morich/usb-serial-for-android
